High-Throughput Equipment
High throughput scanning in both Confocal and Widefield for 2D and 3D assays
High-throughput screening (HTS) is an automated method of imaging using robotics and specialist imaging equipment. Although primarily used for drug discovery the ease of use and versatile nature means that they are open to the general researcher. This could be simple 6-well plate imaging all the way up to 1536 well plates.
High-Throughput Equipment

About
The ImaeXpress HSC.ai is a brand new screening platform using the latest technologies.
Key Features
- 8 Channel imaging (DAPI, CFP, FITC, YFP, TRITC, TxRed, Cy5 and Cy7)
- Stage supports slides and well plates from 6-well -> 1536-well and any plate type with a SBS footprint
- Environmental Control for live cell imaging
- Dual spinning disk with 60um pinhole and 50um slit
- Additional Deep tissue spinning disks for high resolution and high-sensitivity
- Robotic integration with random access stackers
- Fully automated incubator for live large scale screening
About

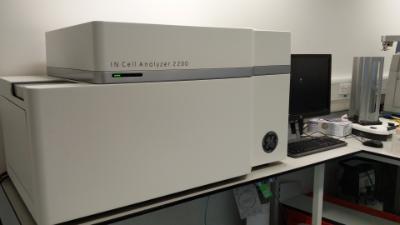

The INCA 2200 is a super-fast full automated and sensitive wide-field imaging system.
Key Features
- Bright solid state and stable LED light source for standard four colour imaging as well as brightfield, Phase and DIC.
- Stage supports slides and well plates from 6-well -> 1536-well and any plate type with a SBS footprint
- Environmental control for live cell imaging
- Liquid handling modules
- On-the-fly deconvolution software
- Capable of 3D imaging and max intensity projection
- Smart review scanning feature allow automated reimaging of hits.
- Integrated with robotic arm for 24hour plate loading
