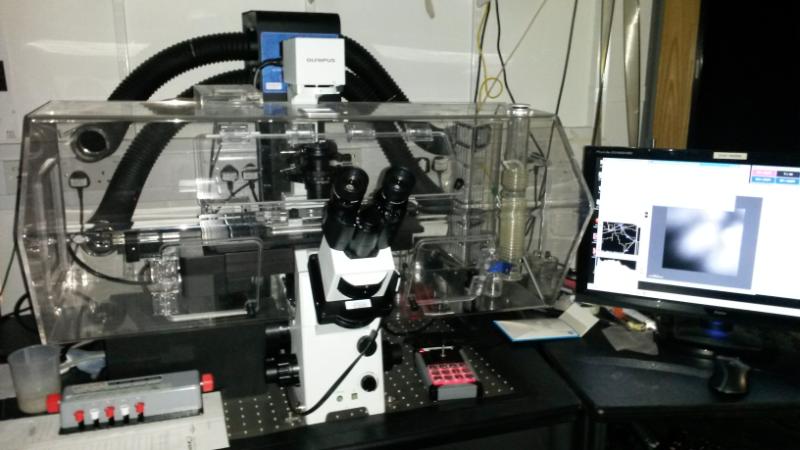

DeltaVision Live Imaging System


The DeltaVision system has an inverted research microscope with environmental chamber and fast, high resolution camera. It is suitable for imaging cells on slides or in culture dishes.  Fluorescence, brightfield, phase contrast and DIC. Allows multi-position time lapse imagining of Z stacks with high accuracy. The main application is imaging cell division in detail.

Olympus IX71 inverted stand with IMSOL incubator environment control system. API white LED transmitted light illuminator. Trulight Fluorescence Illuminator/ FOM/ Insight SSI faclitates DAPI/FITC/TRITC/Cy5/CFP/YFP and GFP/mcherry imaging. CoolSNAP HQ2 camera. 20x/0.85 Oil DIC; 40x1.3 Oil DIC; 60x/  Oil DIC and 100x/1.4 Oil DIC objectives. SoftWoRx image analysis software.

Costs

Price per hour : £2

Price O/N :

Contact details

Facility : BCI Microscopy Facility

Campus : BCI Charterhouse Square

Address : 3nd Floor, John Vance Science Centre, Charterhouse Square, London EC1M 6BQ

Manager : Linda Hammond

Contact : 020 7882 5132
